316/316L Stainless Steel Wire Mesh Screen
316/316L stainless steel wire mesh is a high-performance woven or welded mesh made from 316 or 316L grade stainless steel, known for its superior corrosion resistance, strength, and durability. These grades are part of the austenitic family of stainless steels, containing high levels of chromium (16–18%), nickel (10–14%), and a significant amount of molybdenum (2–3%), which greatly enhances resistance to pitting and crevice corrosion, especially in chloride or marine environments.
316/316L stainless steel wire mesh screen provides unmatched corrosion resistance, strength, and longevity. It is the preferred choice in environments where standard 304 stainless steel mesh may fail, especially in marine, chemical, or high-temperature applications. Its versatility across various weaves and mesh types makes it suitable for filtration, reinforcement, protection, and design purposes across many industries.
Types of 316/316L Stainless Steel Wire Mesh Screen
Stainless steel wire mesh is available in several types, including:
316/316L Stainless Steel Woven Wire Mesh
316/316L stainless steel woven wire mesh is made by interlacing stainless steel wires in various weave patterns, such as plain, twill, or Dutch weave. It offers excellent strength, durability, and corrosion resistance. Commonly used for filtration, screening, and protection, it serves industries like chemical processing, food, mining, and architecture, providing reliable performance in harsh or high-temperature environments.

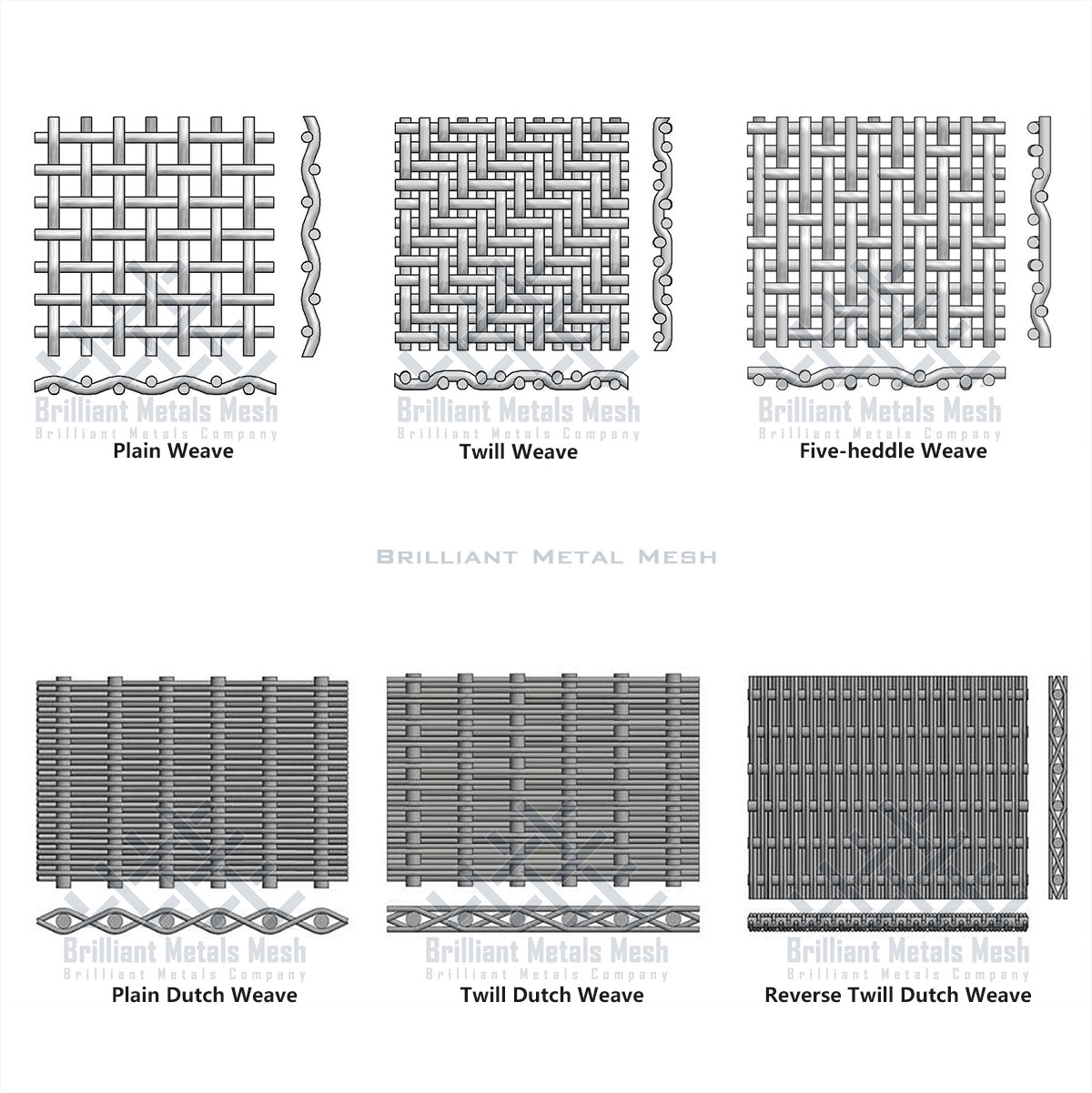

Weave patterns include:
Plain weave: Simple over-under pattern, suitable for general applications.
Twill weave: Each wire passes over two and under two wires, offering higher strength and finer filtration.
Dutch weave (plain or twill): Dense weaves with different warp and weft diameters, ideal for fine filtration.
Reverse Dutch weave: Fewer, thicker weft wires for enhanced flow with fine filtration.

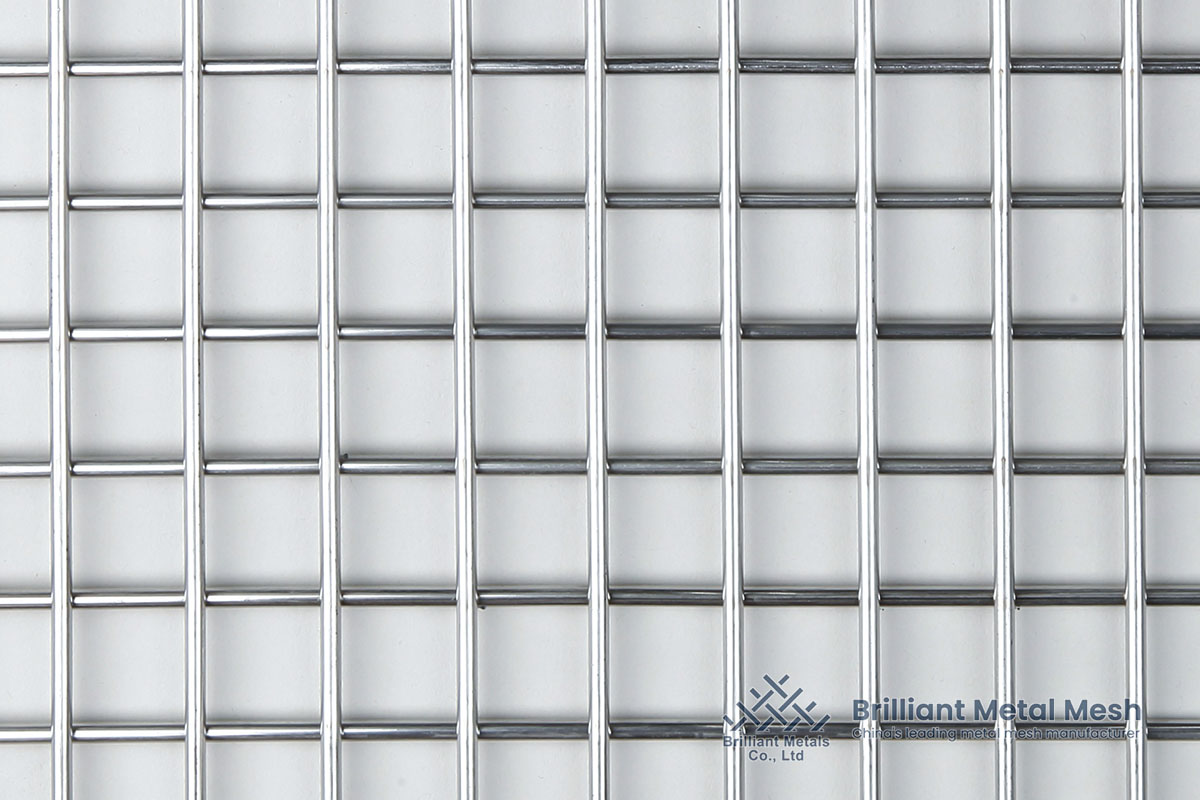

316/316L Stainless Steel Welded Wire Mesh
316/316L stainless steel welded wire mesh is a robust, corrosion-resistant wire mesh fabricated by welding 316 or 316L stainless steel wires at precise intersections, forming a rigid and uniform grid. The 316 alloy contains molybdenum, enhancing resistance to chlorides, acids, and harsh environments like marine or chemical processing, while 316L's low carbon content improves weldability and prevents carbide precipitation.
This mesh offers exceptional strength, durability, and pitting resistance, making it ideal for demanding applications such as filtration, machine guards, fencing, marine enclosures, and architectural screens. Its smooth surface ensures easy cleaning and low maintenance, suitable for food processing, pharmaceuticals, and outdoor installations. Available in various wire diameters and mesh openings, 316/316L welded wire mesh combines structural integrity with long-term performance in corrosive or high-moisture conditions.
Please contact us via the form below, we will get back to you as soon as possible.
