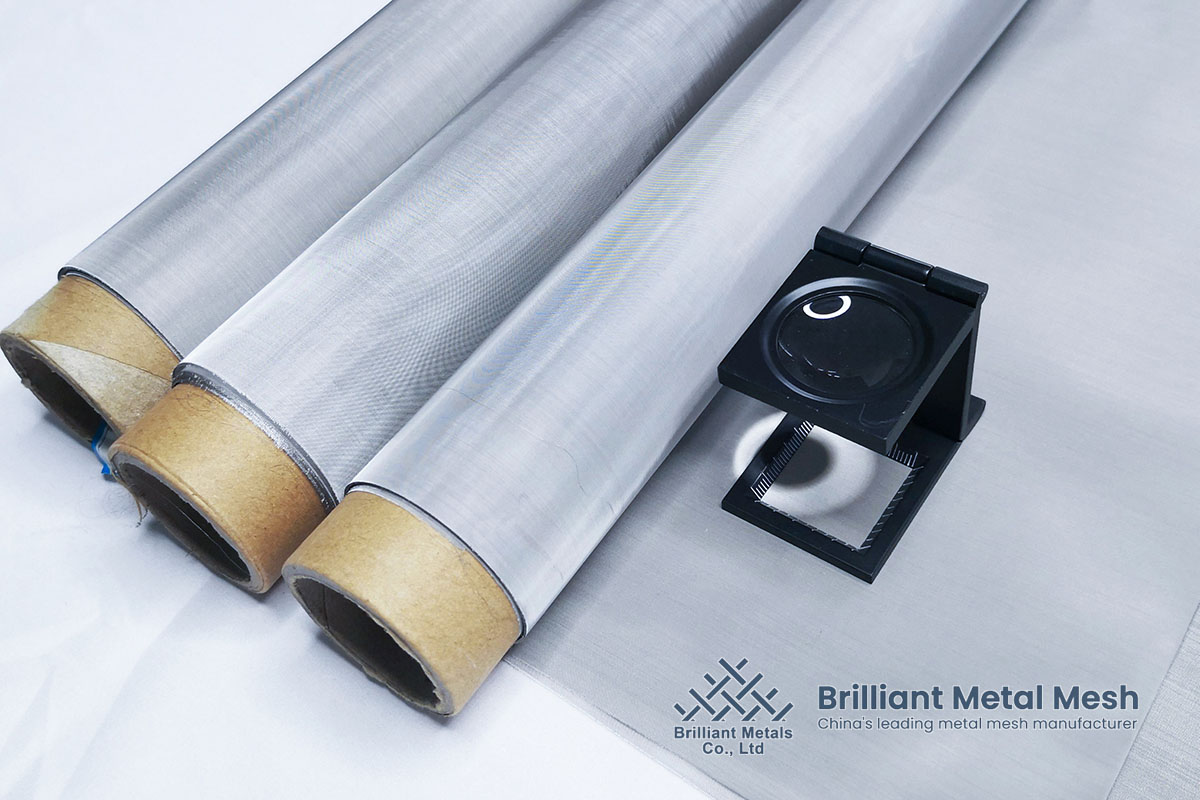

304 Stainless Steel Wire Mesh Panels & Rolls
304 stainless steel wire mesh is a versatile and durable woven or welded mesh made from stainless steel wires. It is widely used across industrial, architectural, and commercial sectors due to its strength, corrosion resistance, and adaptability. The primary material used is stainless steel, commonly grades 304, 316, or 316L, known for their excellent resistance to rust, oxidation, and harsh environmental conditions.
Materials
304 stainless steel: The most common type, offering good corrosion resistance, formability, and strength.
316/316L stainless steel: Contains molybdenum for superior corrosion resistance, especially in marine or chemical environments.
Types of 304 Stainless Steel Wire Mesh
Stainless steel wire mesh is available in several types, including:

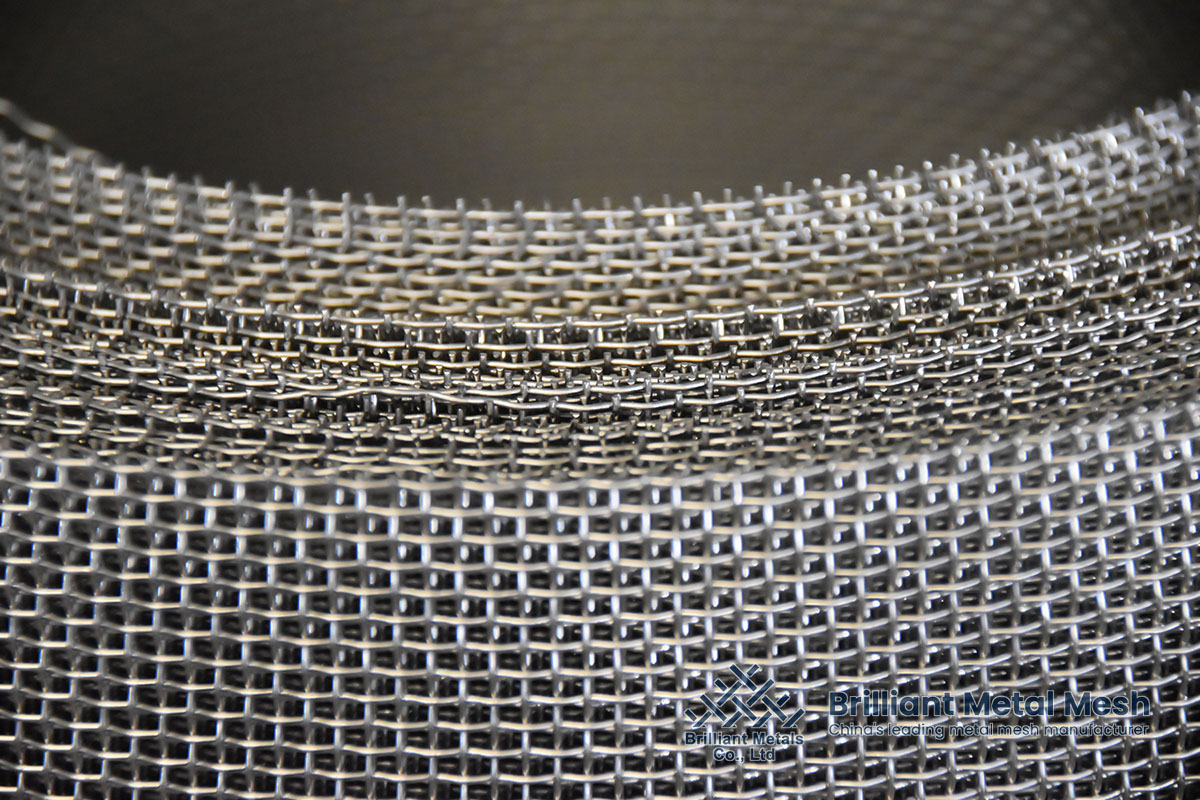

304 Stainless Steel Woven Wire Mesh
304 stainless steel woven wire mesh is made by interweaving stainless steel wires into various patterns such as plain weave or twill weave. It offers excellent strength, corrosion resistance, and durability. Commonly used for filtration, screening, safety, and architectural applications, it is available in different mesh sizes, wire diameters, and weaves to suit industrial and decorative needs.
- Plain Weave: Each weft wire alternately crosses over and under each warp wire (1 over, 1 under).
- Twill Weave: Each weft wire passes over two and under two warp wires in a staggered pattern.
- Dutch Weave: also called Dutch plain weave, combination of plain weave and Dutch weave: large-diameter warp wires + closely spaced weft wires in a plain weave pattern.
- Twill Dutch Weave: Similar to plain Dutch weave but uses a twill pattern (over 2, under 2)
- Reverse Dutch Weave: Opposite of Dutch weave - the weft wires are thicker and spaced farther apart than the warp wires.

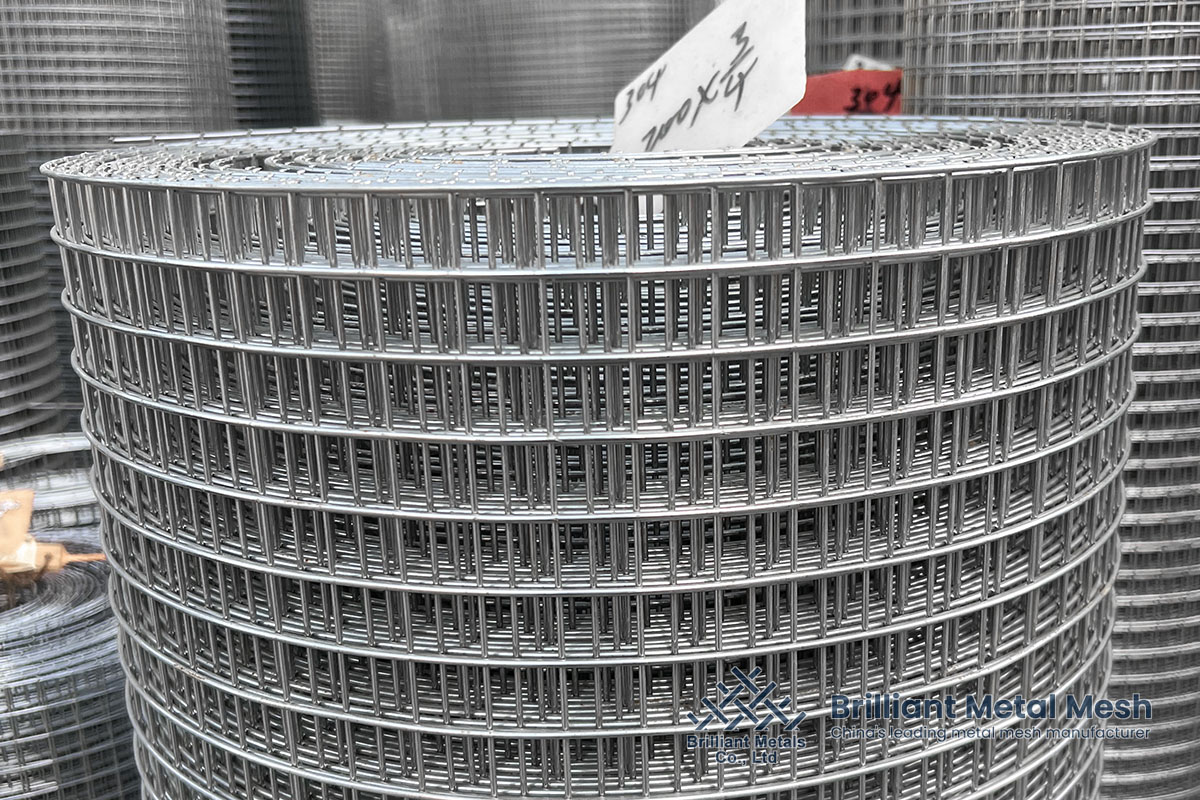

304 Stainless Steel Welded Wire Mesh
304 stainless steel welded wire mesh is a robust and corrosion-resistant material formed by welding intersecting stainless steel wires at right angles, offering high strength and durability for various applications.
304 stainless steel excels in harsh environments due to its rust-resistant properties and requires minimal maintenance. Available in multiple mesh sizes, wire diameters, and sheet or roll forms, it is widely used in fencing, filtration, machine guards, animal enclosures, reinforcement, and architectural projects. Its welded construction ensures structural stability, making it a reliable choice for industrial, commercial, and residential needs where longevity and performance are essential.
